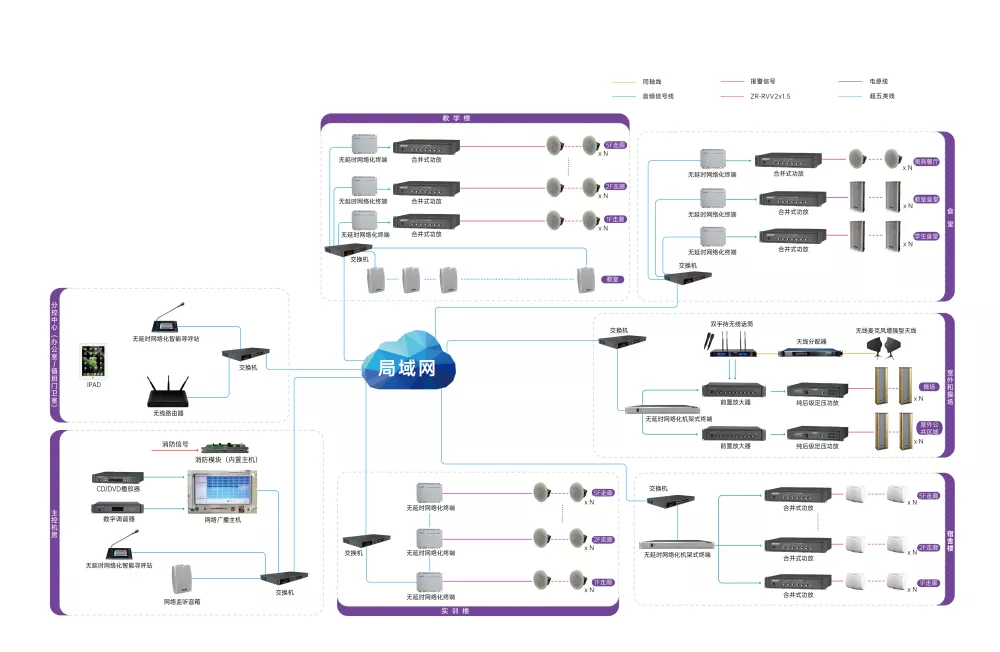

The delay-free networked broadcasting system is based on the most advanced Dante digital audio protocol and adopts a modular layered design. It realizes lossless compression, long-distance transmission and humanized management of high-fidelity audio broadcasting signals. It is a highly networked, integrated and intelligent public broadcasting system.
The system is fully digitally transmitted, with LAN as the main transmission medium, and a transmission distance of more than ten kilometers. It can utilize the existing LAN architecture, with the characteristics of fast construction and investment saving. It can realize the integration of multiple networks, breaking through the pattern of traditional public broadcasting that can only be transmitted downstream and can only be centrally controlled by the machine room, and has powerful interactive functions.
This system is suitable for airports, docks, university towns, schools, large gatherings (such as the World Expo), sports stadiums, industrial parks, parks, rail transit and highways, etc.
1. Based on DANTE digital network audio transmission technology, fully digital transmission;
2. Built-in 8-channel player, supporting a large number of external line inputs;
3. Support timed broadcasting, the system runs according to pre-programmed programs to achieve unattended operation;
4. Support paging function: can page a single partition, group or all partitions;
5. Support intercom function: two pagers can page and intercom each other;
6. Support remote control: The computer in the local area network is equipped with the control software of this system, which can control and modify the operating system;
7. The operation interface is more intuitive and user-friendly. The partition group name can be changed at any time using full keyboard input.
1. Low latency Based on DSPPA digital network audio two-way transmission technology, it has extremely low audio delay and is innovatively applied to the field of broadcasting systems, completely solving the delay problem common to all public broadcasting network products on the market.
2. Fully digital system design Supports no less than 1,000 zones, built-in up to 16 players, intelligent scheduling, supports a large number of external line inputs, and humanized timing programming operation;
3. Forced paging function The main control room can page individual or all partitions on the controller and has the function of receiving telephone paging;
4. Intercom function Two pagers can page and talk to each other, and the pager can talk freely with the intercom panel;
5. Remote control function The remote control computer is any computer in the local area network. It is equipped with the control software of this system and can operate, control and modify this system.
